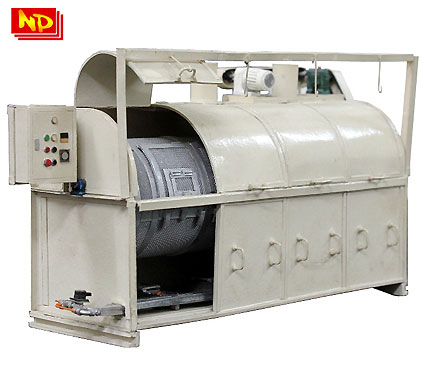

The Second Dryer is a closed type cylindrical dryer which dries the half product (pellet) with 13% - 14% moisture content under controlled time and temperature condition down to an optimum moisture content of 8% - 10% for frying or roasting. L.P.G. or electric heater can be its available heat source. Standard drying time is between 6 - 12 hours at 60°C - 70°C. It has a 24-hr timer for auto start/stop and auto temperature controller. The 2nd Dryer affects the appearance, expansion and texture of the finished products.

SPECIFICATIONS

Tumbler Capacity:
400 kgs/batch; 100kgs per compartment

Power Requirement:
1 kW; 3 Ph

Dimensions:
Tumbler: 937 mm (Dia) x 2,438 mm (L)
Overall: 2,990 mm (L) x 1,286 mm (W) x 2,100 mm (H)
