NPOSK

“...Fully automatic yet compact in size. Any size and shape, even customer’s designs are available (set of moulding die to be installed). Basically sold in four units as standard set. Natural items such as sesame seeds, seaweeds, herbs, pea’s powder, fried pieces or fibres and etc. can be mixed to the raw material mixture...”

SPECIFICATIONS

Total Dimension:

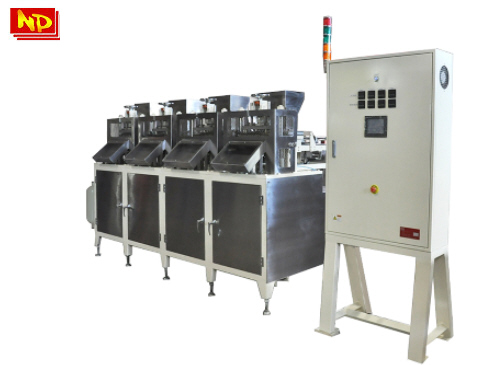

(HMS-70-4 Heads): 1,100 mm (L) x 2,720 mm (W) x 1,730 mm (H)

Electrical Consumption:
Approx. 22.2 kW/hr. (Maximum)

Effective Mold Die Size:
400 mm (L) x 200 mm (W) (4 sets of dies are installed)

Min / Max Product Thickness:
1 mm - 15 mm (depending on raw materials used)

Air Compressor:
3.7 kW (5 HP) required.

Machine Weight :
Approx. 2,300 kgs.

Production Capacity:
Approx. 43,200 pcs/hr

Electricity:
- Hydraulic Drive by 2.2kW with 31.75 L/min with 20 L tank capacity
- Model Yuken YP22-C-2-2.2-22 for every 4 Heads
- 3 Units of Hydraulic cylinder with solenoid valve for every head
- 2 units of Pneumatic cylinder with solenoid valve for every head
- Electric Heater 0.5kw x 10 for every set of die assembly with temp controller
