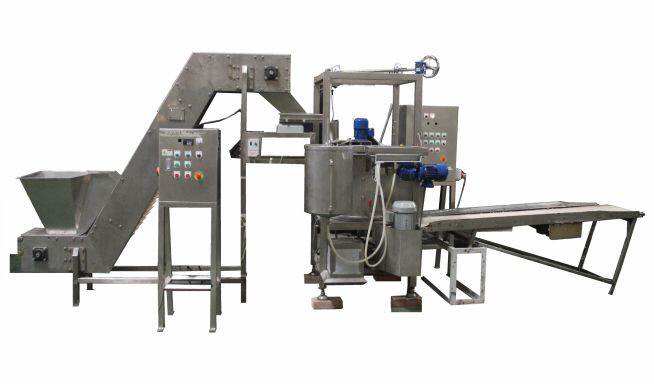

Introducing the “New Liquid Flavor Applicator”, Model LFA-200 an excellent syrup coating system that is suitable for your products such as “Roasted Pellet Snacks” Direct puff snack, coated nuts. With this vertical compact design, it operates by centrifugal motion making prominent “uniform coating” & “Application rate adjustable” it saves coating process time, quick and easy replacement of liquid seasoning, and has a non-stick cylinder material that provides draining and cleaning with ease.



Features:
Coating only less than 10 sec (Adjustable)
Coating rate easily adjustable
Cleaning less than 15 minutes
Foot space only 15% our ration compare to our horizontal coater
Stainless steel coating chamber & Liquid tank
Stainless steel frame
Food grade plastic atomizer
Food grade plastic modular-type conveyor belt with flights
Relay logic control
Product Motion: Revolution and rotation by means of centrifugal motion
Liquid seasoning spray system: high speed atomizer



Specification:
Frame: Food grade Stainless steel
Dimension machine 1,100mm (L) x 1350mm (W) x 1,750mm (H)
Dimension Including Feed-Conveyor and control
3,450mm (L) x 2,000mm (W) x 1,759mm (H)



Electrical:
Electrical: 2.9Kw
Compressed Air: 50 li/hr. 6 bars pressure
