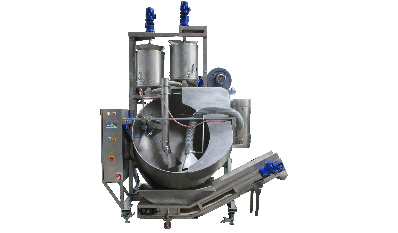

APC-100R is an automated & fully functional type of peanut coater, it has a capacity of 25kgs/ batch Installed, with a 2 standard powder storage (75 liter tank) that can be used for making single or double coated application, a precise programmable coating parameters by PLC for easy adjustments of grams, minutes, & control the application of the 35 liter liquid solution tank (for binding) and minimizing the human intervention down to 10%. It has an additional features of dust particle tank which will filter all the excess powder particles during the operations for easy cleaning. Once coated nuts are completed, operator will have to open the tumbler window for easy discharge, conveyed to the vibratory seiver for removal of excess powder and small debris. Coated nuts are now ready for roasting.



Features:
Programmable powder & liquid binder distribution system
Automatic discharge
Dust Particle vacuum filter
More Variety mixtures
Food grade scraper – to avoid sticking of raw materials and for easy cleaning



Specification:
Frame: Stainless steel
Capacity: Approx. 80-150kgs/hr of coated nuts.
Dimension: (H) 3,400 mm x (W) 2,300 mm x (L ) 1,900 mm
Motion: Clockwise rotation
System: Batch type coating system



Electrical:
Coating Tumbler: 1.5kw
Powder applicator: 0.18kw
Liquid applicator: 0.37kw
