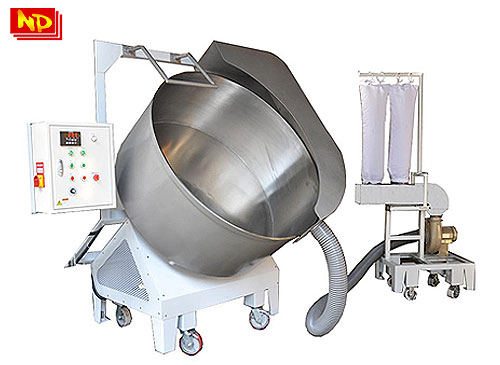

The Powder Coater consists of a coating tumbler and a powder dust collector. Raw materials such as raw peanuts or fried peas are fed into the tumbler manually. The tumbler continuously turns so that the raw materials can be coated by intermittently manual application of syrup and powder until it forms to the desired size of coated nuts.

The powder dust collector collects excess powder generated during the coating process.

SPECIFICATIONS

Capacity: Approx. 80-100 kgs/hr

Dimension:
Coating Tumbler
1,700mm (L) x 2,150mm (W) x 2,000mm (H)
Dust Collector
1,000mm (L) x 600mm (W) x 2010mm (H)

Drive Unit:
1.5 kw x 1 (Main drive); 0.75kw (Dust Collector Blower)

Material:
Mild Steel frame, Stainless Steel Tumbler
