FLAVORING & SEASONING SYSTEM

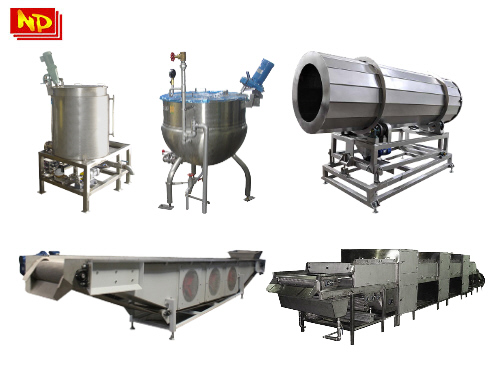

FAS-300 Flavor Applicator for Syrup Coated Snacks



Syrup Feeding System is composed of

WATER-JACKETED SYRUP FEEDING TANK w/ Agitator

3-way valve for syrup feed and re-circulation

Machine Size: 1,200 mm (L) x 1,000 mm (W) x 1,500 mm (H) Materials: Tank: SUS 304 Double Sided, water jacketed Support Leg: SUS 202, sq Tubing, 50X50 Water Electric Heater; 5 kw, Water Re-circulating pump: Centrifugal type 20 LTN5.07S Syrup Re-circulating pump; DNGUH-1 type 0.2 kw Agitator Motor: 0.4kw

SYRUP COOKER w/ Transfer Pump and Syrup Spraying Sytem

Syrup Cooker is composed of Double Jacketed Steam heated Syrup Tank, Agitator, Pressure Gauge and Temperature Sensor.

Machine Dimensions : 1,600 mm (L) x 750 mm (W) x 1,600 mm (H)
Steam Consumption : 95 kgs/hr.
Material : Shell SUS 304 with insulator, Support leg, SUS202 piping 75mm dia
Mixer Motor : 0.40 kw
Mixing : with anchor blade type mixer
Geared pump, DNGUH-1 type; 0.75 kw,
Air Consumption : 450 liter/min., at 4 kgs/sq.cm

FLAVOR APPLICATOR TUMBLER

Syrup Feeding System is composed of Cylindrical Coating tumbler. Syrup supply from Water Jacketed Feeding tank with agitator, Water Circulation Pump by Water Jacketed, Feeding Hose, Geared pump, 2-fluid Spray Nozzle.

Machine Size: 2,435 mm (L) x 1,060 mm (W) x 1,300 mm (H)
Materials: Tumbler: SUS 304 2T; Support Leg SUS 202, sq. Tubing, 50x50
Electric Requirement : 0.75kw
Inverter control for tumbler rotation.







 FA-300 Flavor Applicator

DRYING SYSTEM IS COMPOSED OF:

FINISHING DRYER (APD-200)

The Finishing Dryer can be used in many snack products (liquid coated snacks, chocolate coated puffed snacks and etc.) that use liquid/wet seasoning. It dries/bakes the liquid seasoning coated snack rapidly by means of high speed hot-air circulation

Power Consumption: 6.5 kw
Capacity: Approx. 150-180 kgs/hr (for Popcorn)
LP Gas consumption: Approx. 11 kgs/hr
Conveyor net: SUS 304 Stainless steel
Conveyor speed and Blower rpm: Inverter controlled
Machine size: 11,400 mm ( L) x 2,200 mm (W) x 1,900 mm (H)


COOLING CONVEYOR

The cooling conveyor cools down/conditions the liquid coated nuts after passing through the Finishing Dryer.

Dimension: 3,720 mm (L) x 1,025 mm (W) x 1,370 mm (H)
Blower: Axial Type 400 mm diameter
Motor: 0.37kw x 1
Conveyor Type: Wire Mess (Balance Belt)
