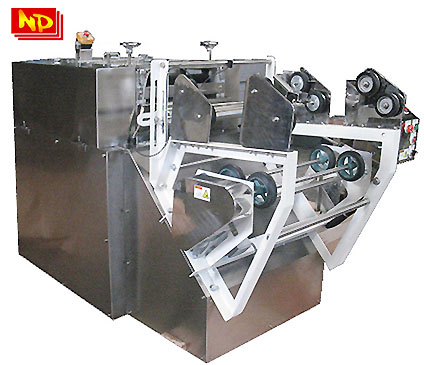

The Direct Cutter directly cuts the sheet from the 11-Layer Drying/Cooling Conveyor, equipped with a set of longitudinal ring cutter, and a multiple rotary transversal cutter that processes the dough sheet. Main drive is inverter controlled with low speed for sheet feeding and high speed for rapid cutting. Pellet cut-off length is variable and adjusted by a mechanical speed of the longitudinal and transveral cutters. Pellet width is determined by the width of the ring cutting assembly (slitting unit).

SPECIFICATIONS

Capacity:
1,000 kgs/hr

Power Requirement:
4.2 kW; 3Ph

Dimension:
2,380 mm (L) x 900 mm (W) x 1,350 mm (H)
