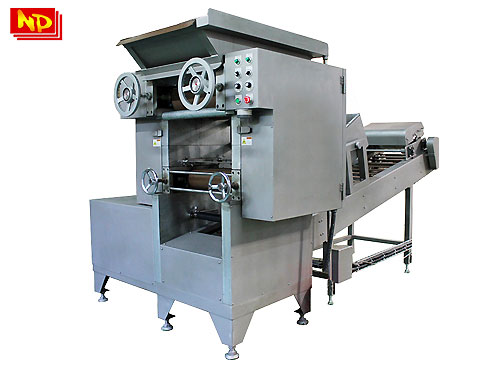

The Dough Sheeter ES-250 sheets the cooked dough to its desired thickness and pattern. Sheet patterns can be changed by changing the sheeting roll designs located just below the feeding rollers. Sheeting speed is inverter-controlled and synchronized with the cooling conveyor by a proportional speed controller. The feeding and sheeting rollers are coated with Teflon to prevent the dough from sticking.

SPECIFICATIONS

2 x 250 mm dia. Teflon Coated Feeding Roller
2 x 130mm dia. Teflon Coated Sheeting Roller
Discharge conveyor with cooling fan
Sheet edge and center slitter

Power Requirement:
4 kW; 3Ph

Capacity:
250 kgs/hr depending on the sheet’s thickness

Dimension:
3,111 mm (L) x 1,650 mm (W) x 1,555 mm (H)
