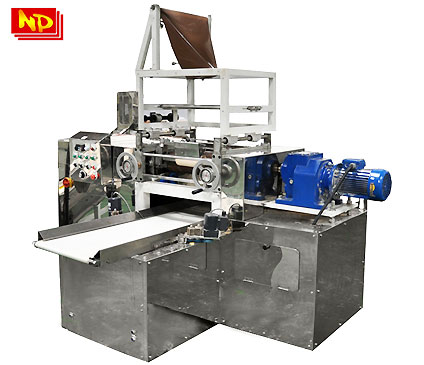

The Doubling Machine is designed to receive the flat dough sheet from the 11-Layer Drying/Cooling Conveyor and then folds the sheet to form a 2-layer sheet. It is equipped with a movable forming collar with sensors at the sides for tracking control. The folded dough sheet is fed to the Forming Machine for forming. The forming rollers are inverter-controlled and synchronized with the Dough Sheeter and the 11-Layer Drying/Cooling Conveyor. It is equipped with an oiling roller to the forming rollers whenever necessary. A discharge conveyor receives the formed double layer dough sheet for transfer to the Dryer Separator.

SPECIFICATIONS

Capacity:
150 kgs/hr depending on shape and design

Power Requirement:
3.37 kW

Frame/Cover:
Mild steel frame SUS 304 forming collar

Forming Rollers:
2 x 132 mm dia., 530 mm (W)

Dimension:
1,600 mm (L) x 2,000 mm (W) x 1,950 mm (H)

Cutting Width:
260 mm
